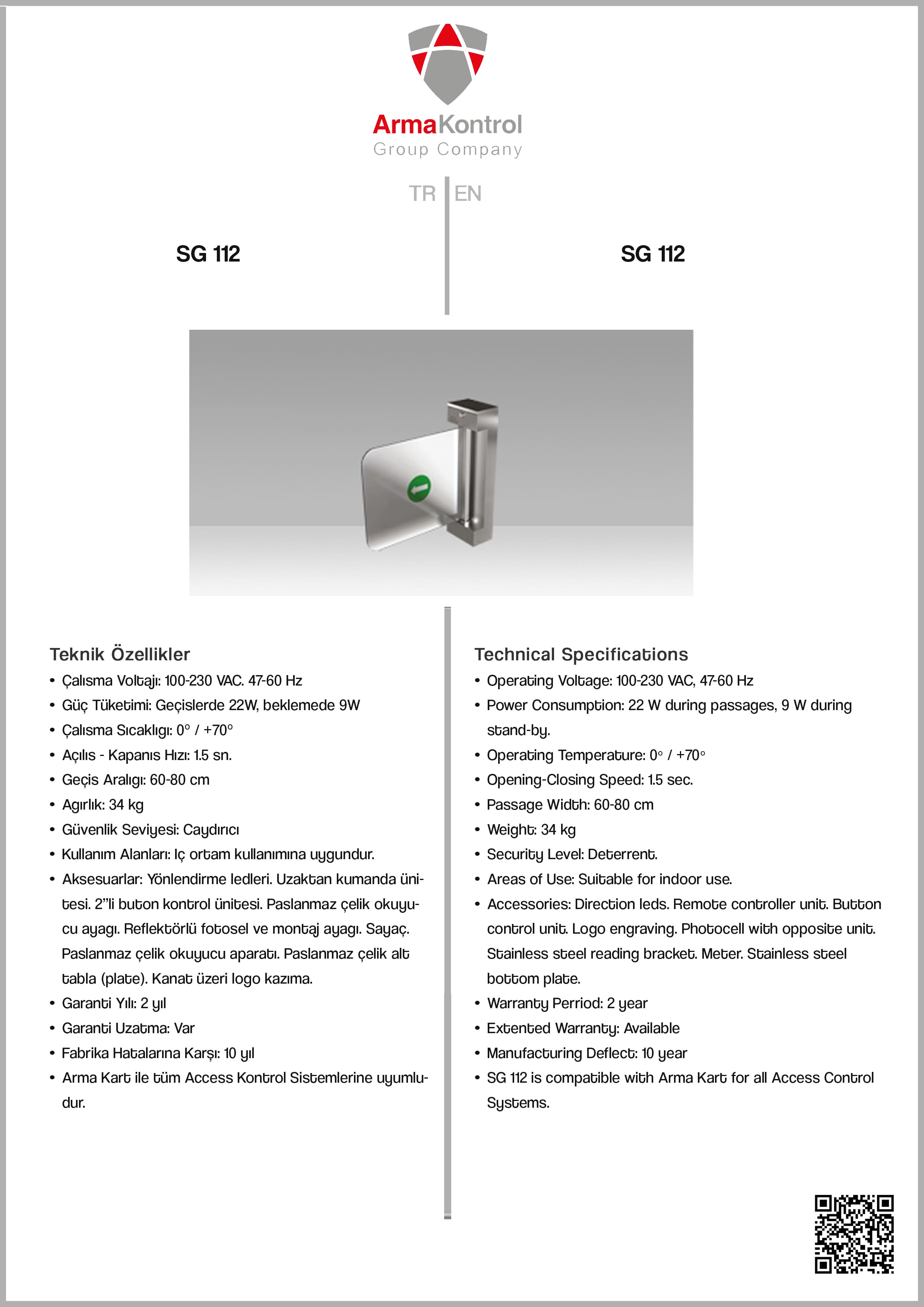

SG 112
Operation: Bi-directional motor wing.
Frame: AISI 304 quality stainless steel. Optional: AISI 316 quality.
Wing: 10 mm thick plexiglass.
Functions: Automatic closing. Service mode. Soft stop capability at locking points.
Audio warning.
Mechanism: Fail-Safe (Free passage during power failure).
Emergency Mode: In case of emergency, the unit switches in to “emergency mode” following the signal received from fire detection system, and the wing can be opened in either directions automatically.
Operating Voltage: 100-230 VAC, 47-60 Hz
Power Consumption: 22 W during passages, 9 W during stand-by.
Operating Temperature: 0º / +70º
Opening-Closing Speed: 1.5 sec.
Passage Width: 60-80 cm
Weight: 34 kg
Security Level: Deterrent.
Areas of Use: Suitable for indoor use.
Accessories: Direction leds. Remote controller unit. Button control unit. Logo engraving. Photocell with opposite unit. Stainless steel reading bracket. Meter. Stainless steel bottom plate.
Warranty Perriod: 2 year
Extented Warranty: Available
Manufacturing Deflect: 10 year
SG 112 is compatible with Arma Kart for all Access Control Systems.
