Park Routing System

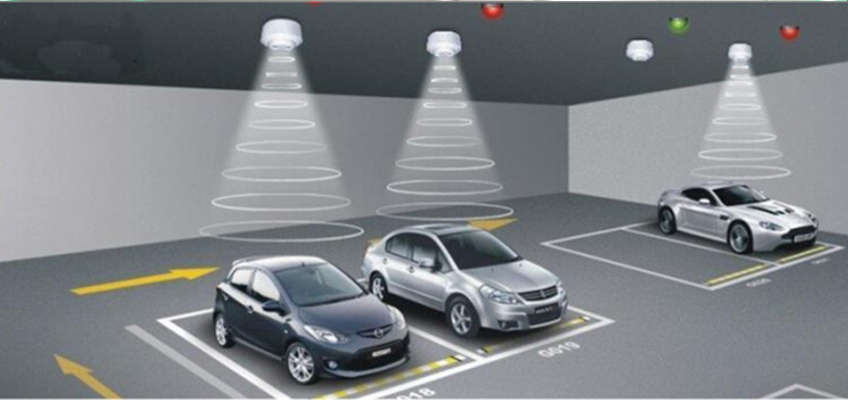

The Arma Kontrol Park Routing System is designed to prevent drivers from wasting unnecessary time and fuel in the parking lot. This smart park routing system guides drivers from their start point to the closest parking spot using dynamic directional arrows, screens that show the number of empty parking spaces, and parking status lights suspended above each parking space.
Parking Space Status Display Lights:
RED – OCCUPIED
GREEN – AVAILABLE
BLUE – AVAILABLE FOR DISABLED DRIVERS
8192 Vehicle Sensor Monitoring Capacity
RGB Parking Space Status Display Lights
40 KHz ultrasonic vehicle detection sensor
Automatic sensor addressing function
Adjustable sensor height
Low power consumption topology with DC-DC voltage converter
Operating voltage in 8V DC-35V DC range
RS485 interconnection among units
16 bit CRC-Cyclic Redundancy Check algorithm
On the spot error and fault detection and reporting
Instantly updated, LED, color 3-digit number and arrow display
LED and color input Totem displays showing status of all floors
Monitors the status of all floors and regions of the car park via control software
Service access over the Internet
Displays the status of each parking lot in floor plans
LED matrix and RGB number, arrow and totem displays
Offline mode that continues to work without disruption if the computer is disabled
On the spot failure and error detection with self-test function with no need for a computer on each floor
Can display messages on the information screens in the parking lot using TCP/IP Information Screens
