Counter-Terror Standard Road Blocker RB-ATRB-90
Arma Counter Terror Hydraulic Road Blocker has stopped 7.5 tons of vehicle which has 80 km speed in crash test which is executed on Mira Test Site in United Kingdom and works without problem after impact. Becouse of success on crash test, our hydraulic bollard has earned ISO 22343-1 / IWA 14-1:2013 / PAS68 crash test certification.
Our crash test products have proven their quality as barrier systems with CE, ISO, TÜV certificates.
Crash Test Report:
PAS 68:2013 V/7500[N3]/80/90:7.2/26.8
IWA 14-1:2013 V/7200[N3C]/80/90:8.1

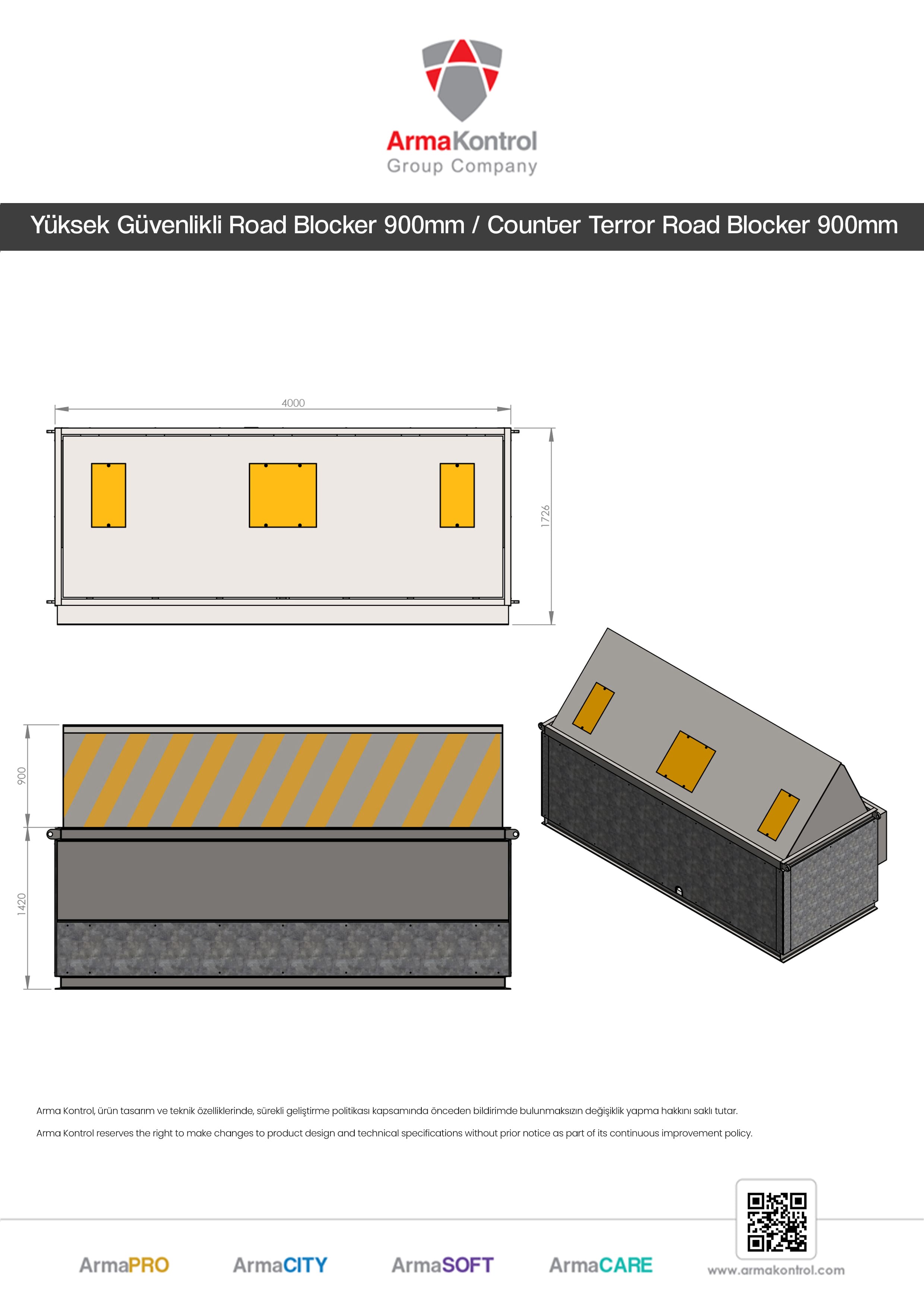

Height: 900 mm
Width: 2000 - 3000 - 4000 - 5000 - 6000 mm
Wall Thickness: 10 mm
Cover Plate: Galvanized
Movement Mechanism: Hydraulic
Power Supply: 3ph AC 380V (±10) 50/60 Hz.
Operating Speed: 4 - 6, 6 - 8 sec
Control Panel: Arma Board [EE51KAR]
Security Feature: Loop Sensor and Detection Systems
Warranty Perriod: 3 year
Extented Warranty: Available
Spare Part Supply Warranty: 10 year
Counter-Terror Standard Road Blocker is compatible with Arma Kart for all Access Control Systems.
