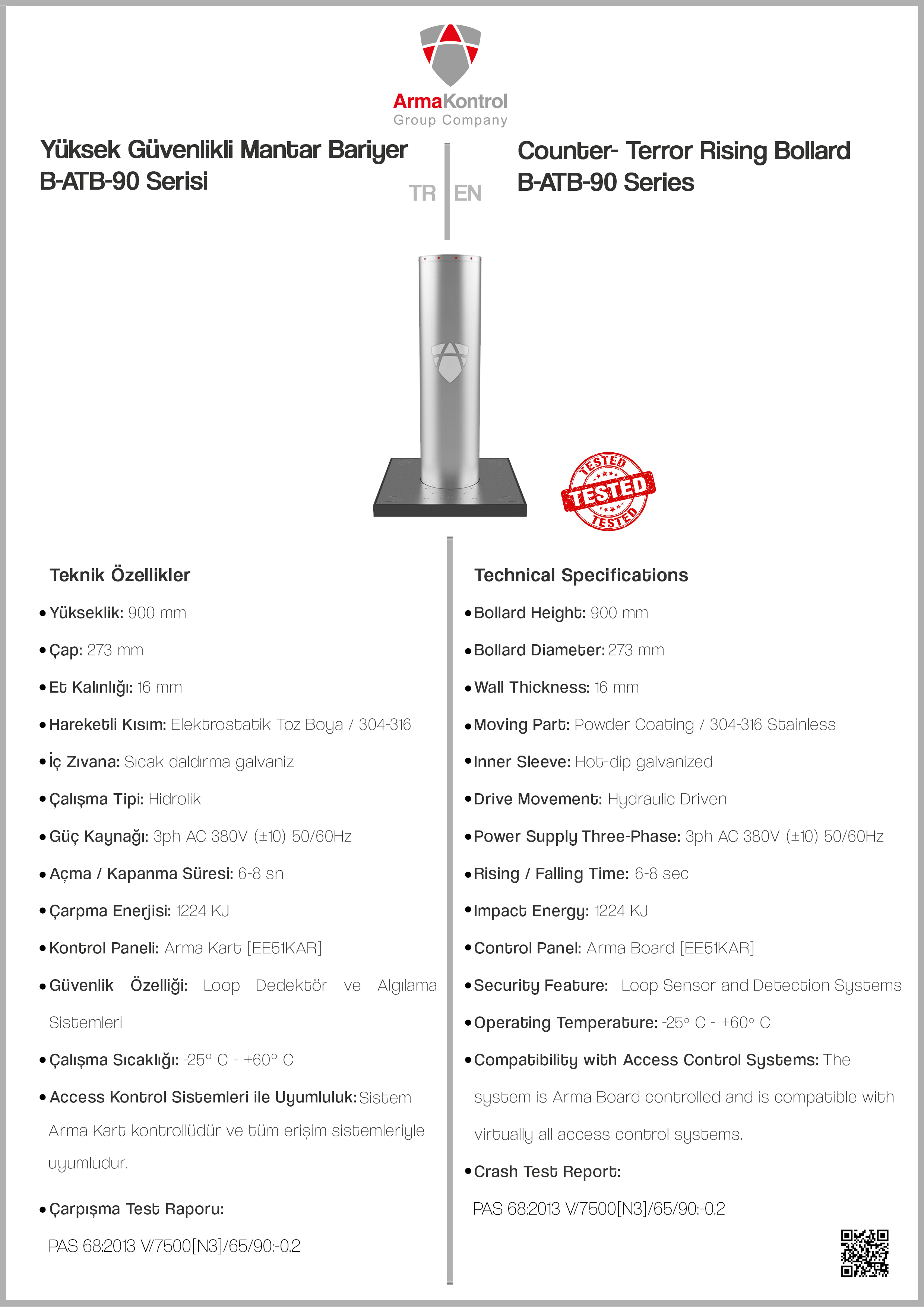

Counter Terror Rising Bollard B-ATB-90
Arma Counter Terror Rising Bollard has stopped 7.5 ton of vehicle which has 65 km speed in crash test which is executed on AISICO Test Site in Italy. Becouse of success on crash test, our hydraulic bollard has earned ISO 22343-1 / IWA 14-1:2013 / PAS 68 crash test certification.
Crash Test Report:
ISO 22343-1 V/7500[N3C]/65/90:0
IWA 14-1:2013 V/7500[N3C]/65/90:0

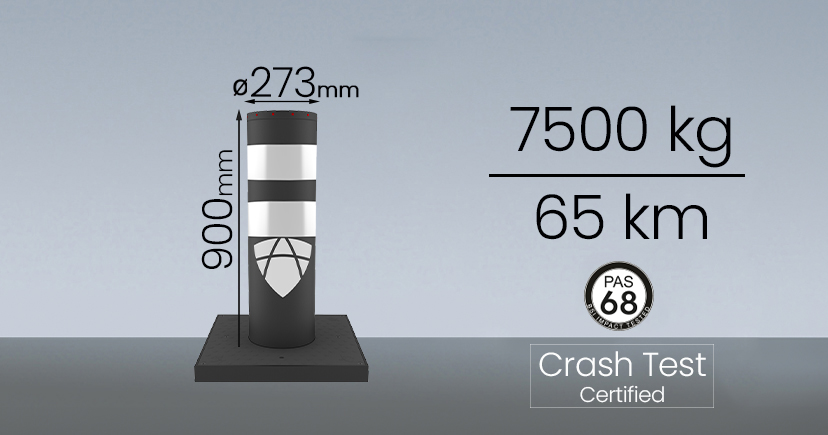

Bollard Height: 900 mm
Bollard Diameter: 273 mm
Wall Thickness: 16 mm
Moving Part: Powder Coating / 304-316 Stainless
Inner Sleeve: Hot-dip galvanized
Drive Movement: Hydraulic Driven
Power Supply Three-Phase: 3ph AC 380V (±10) 50/60Hz
Rising / Falling Time: 6-8 sec
Impact Energy: 1224 KJ
Control Panel: Arma Board [EE51KAR]
Security Feature: Loop Sensor and Detection Systems
Operating Temperature: -25º C - +60º C
Warranty Perriod:
Extented Warranty: Available
Spare Part Supply Warranty: 10 year
Counter-Terror Rising Bollard is compatible with Arma Kart for all Access Control Systems.
