Counter Terror Rising Bollard 700 mm
Arma Counter Terror Rising Bollard has stopped 7.5 ton of vehicle which has 48 km speed in crash test which is executed on HORIBA MIRA Test Site in United Kingdom. Becouse of success on crash test, our hydraulic bollard has earned ISO 22343-1 / IWA 14-1:2013 / PAS 68 crash test certification.

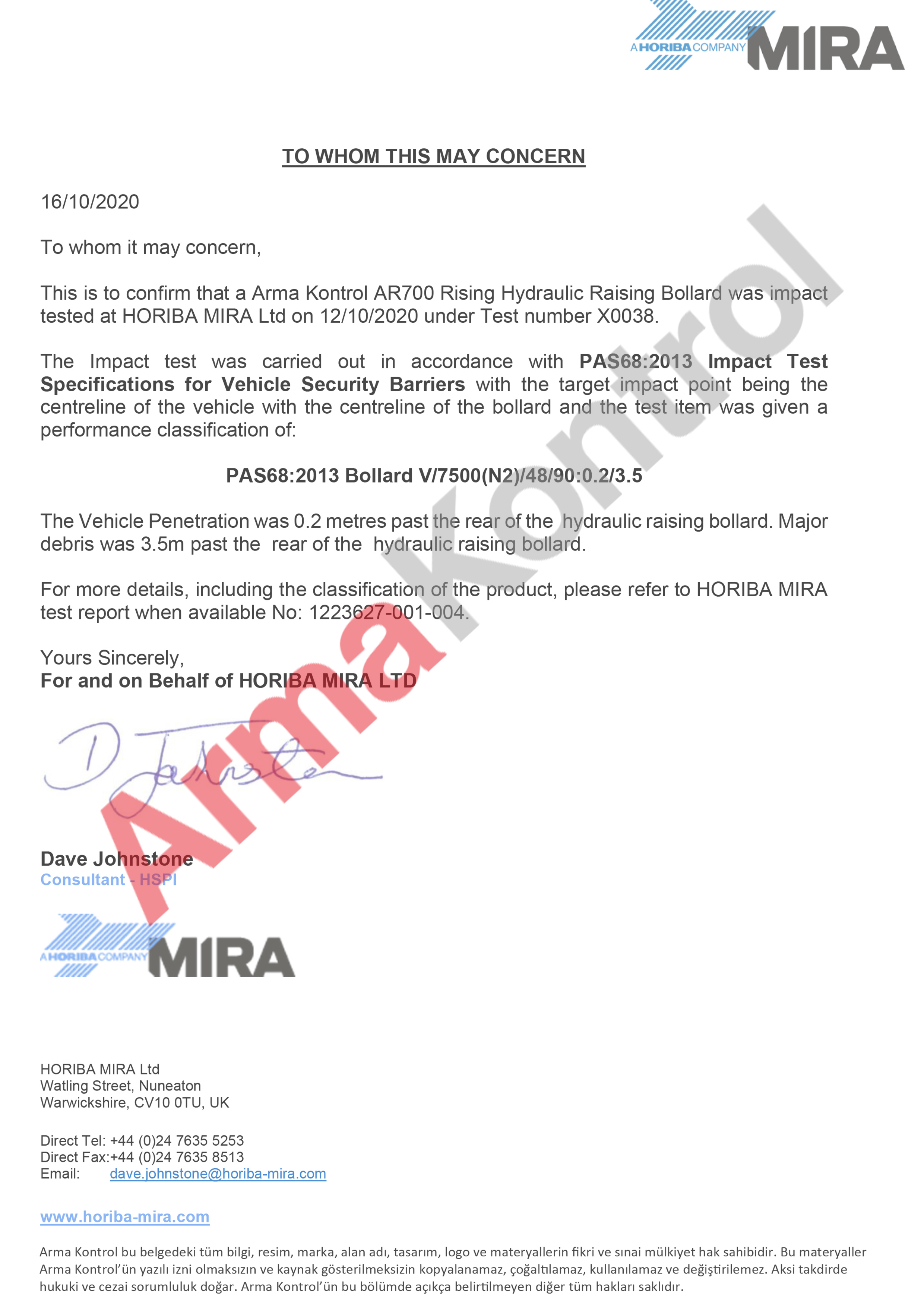

Crash Test Report:
PAS 68 V/7500[N2]/48/90:0.2/3.5

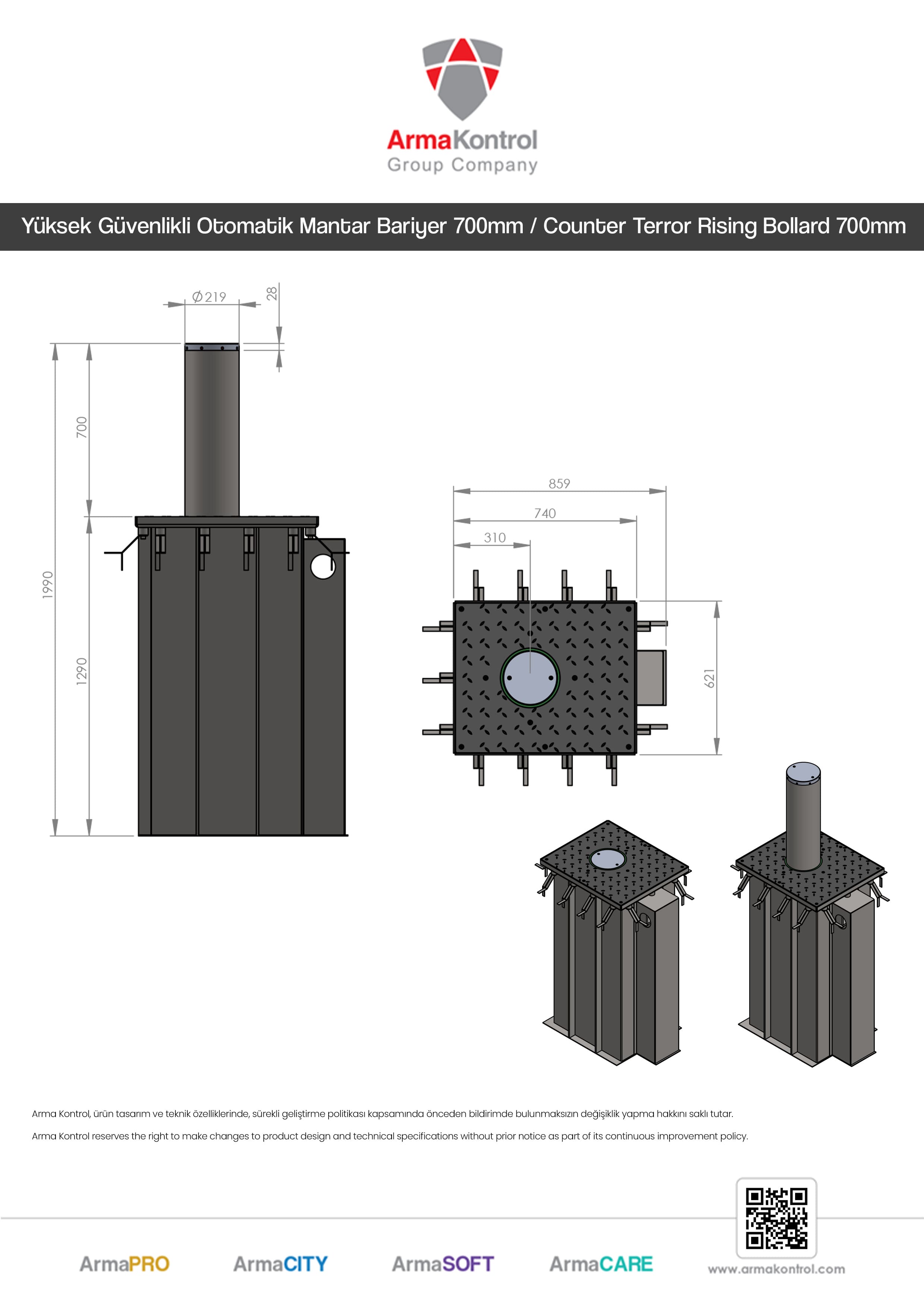

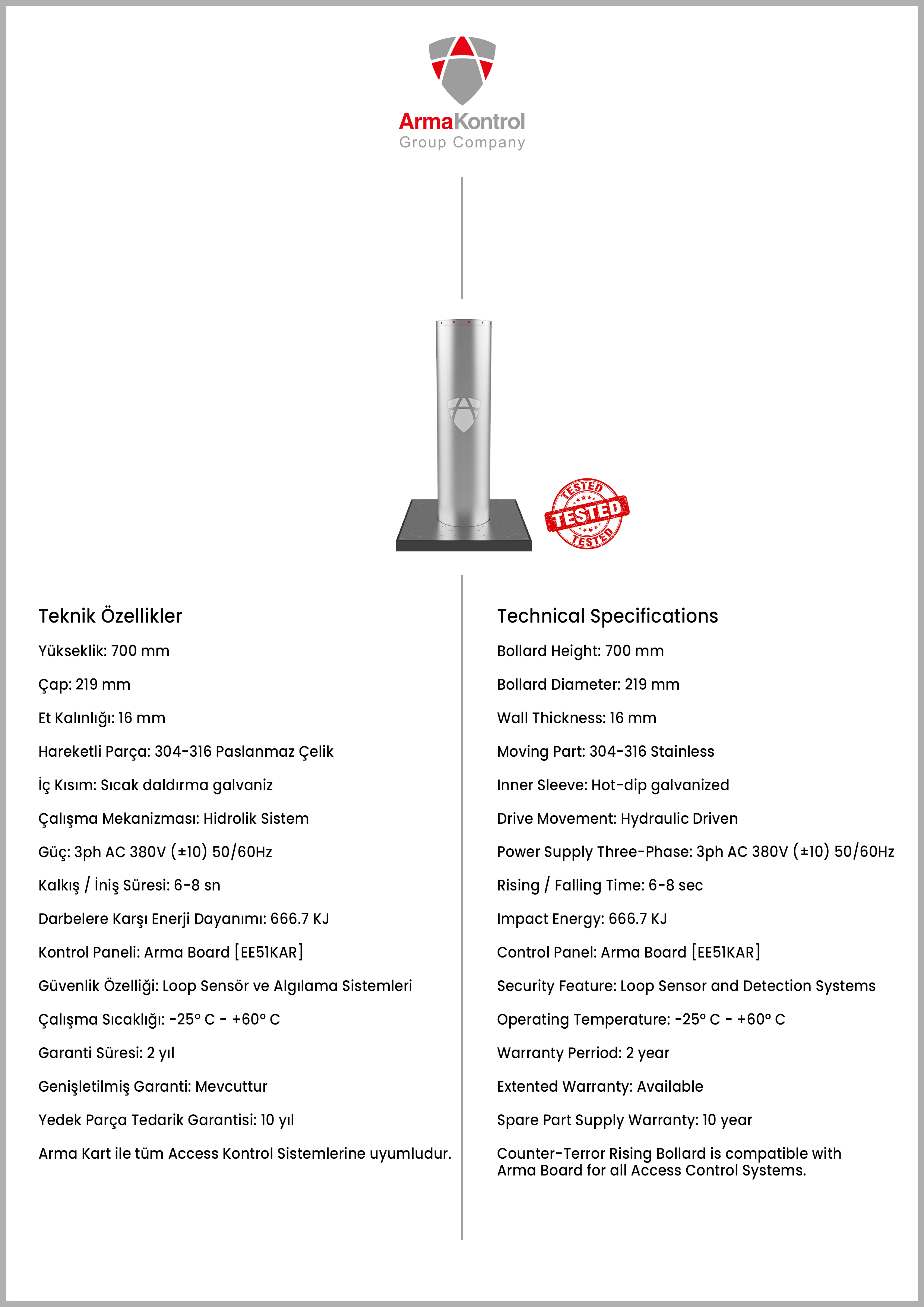

Bollard Height: 700 mm
Bollard Diameter: 219 mm
Wall Thickness: 16 mm
Moving Part: 304-316 Stainless
Inner Sleeve: Hot-dip galvanized
Drive Movement: Hydraulic Driven
Power Supply Three-Phase: 3ph AC 380V (±10) 50/60Hz
Rising / Falling Time: 6-8 sec
Impact Energy: 640 KJ
Control Panel: Arma Board [EE51KAR]
Security Feature: Loop Sensor and Detection Systems
Operating Temperature: -25º C - +60º C
Warranty Perriod:
Extented Warranty: Available
Spare Part Supply Warranty: 10 year
Counter-Terror Rising Bollard is compatible with Arma Board for all Access Control Systems.
